FTM200 micro gas mass flowmeter
The FTM200 Micro Gas Mass Flow Meter offers precise gas flow measurement with a compact design, supporting multiple outputs and real-time zero adjustment. Ideal for medical, oil, chemical, and energy sectors, it features a rotatable LCD display, broad rangeability, and robust connectivity options for easy integration and networked management.
Characteristics
Advanced Anti-Interference Technologies Ensuring Reliable Performance in Noisy Environments
Multiple Signal Outputs Including 4-20mA, Pulse, RS485, and Flow Limit Alarm for Comprehensive Network Integration
Real-time Zero Adjustment for Continuous Monitoring and Faster Response Times
High Precision Measurement Enabled by Advanced Microelectronic Technology for Enhanced Accuracy
Rotatable 180° Clear LCD Display Offering Flexible and Intuitive Reading from Various Angles
Supports Easy Networked Management Through Communication Interfaces Facilitating Remote Monitoring and Control

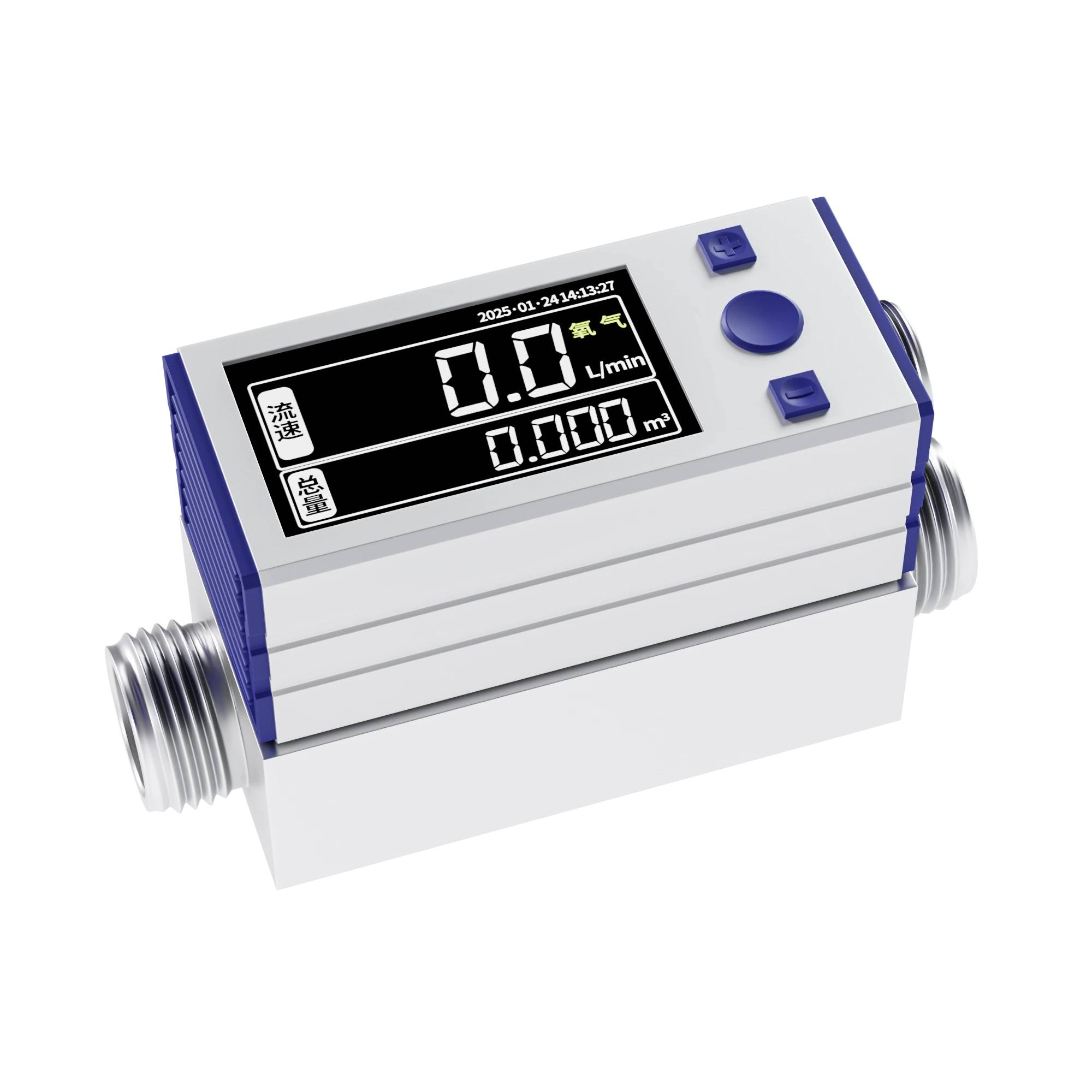

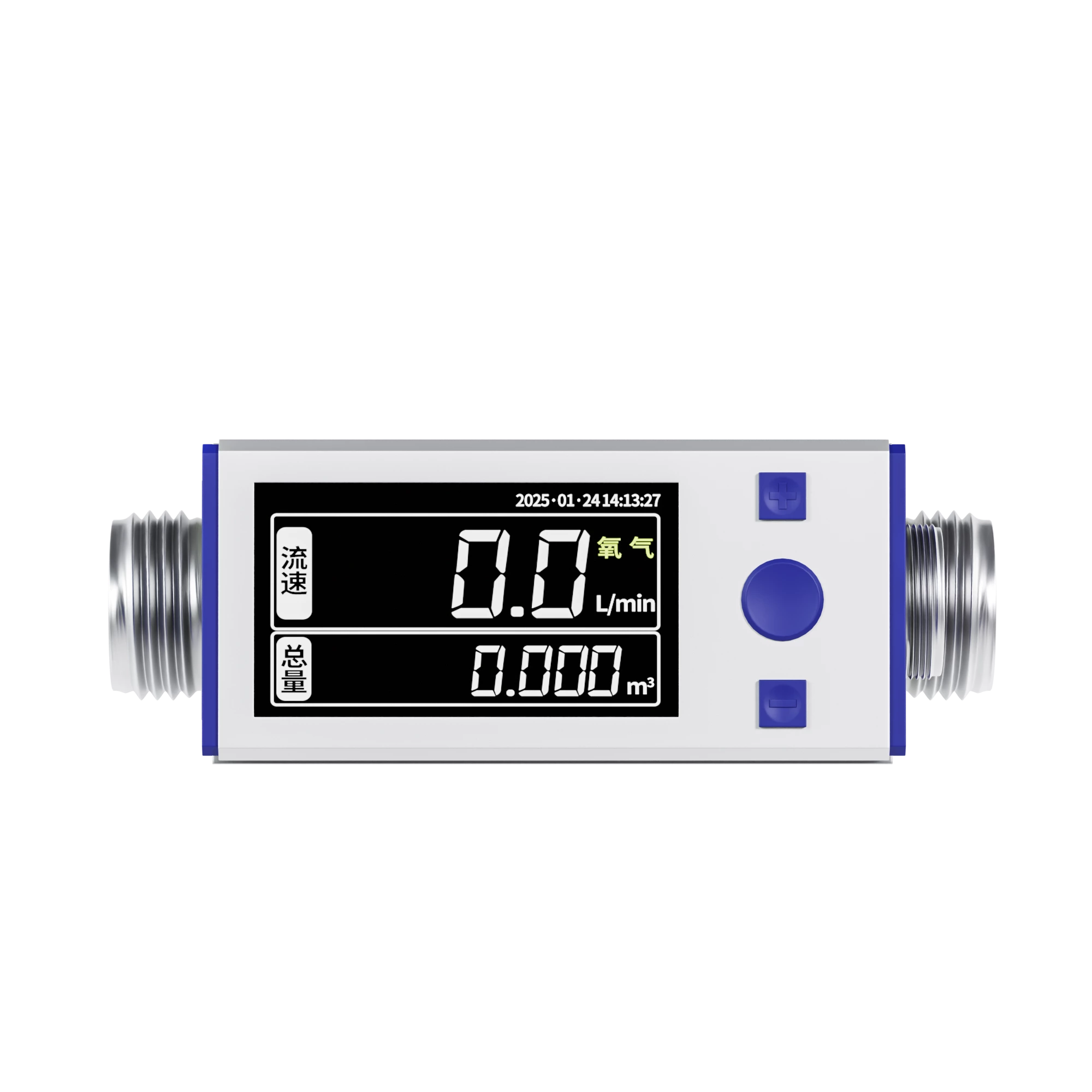

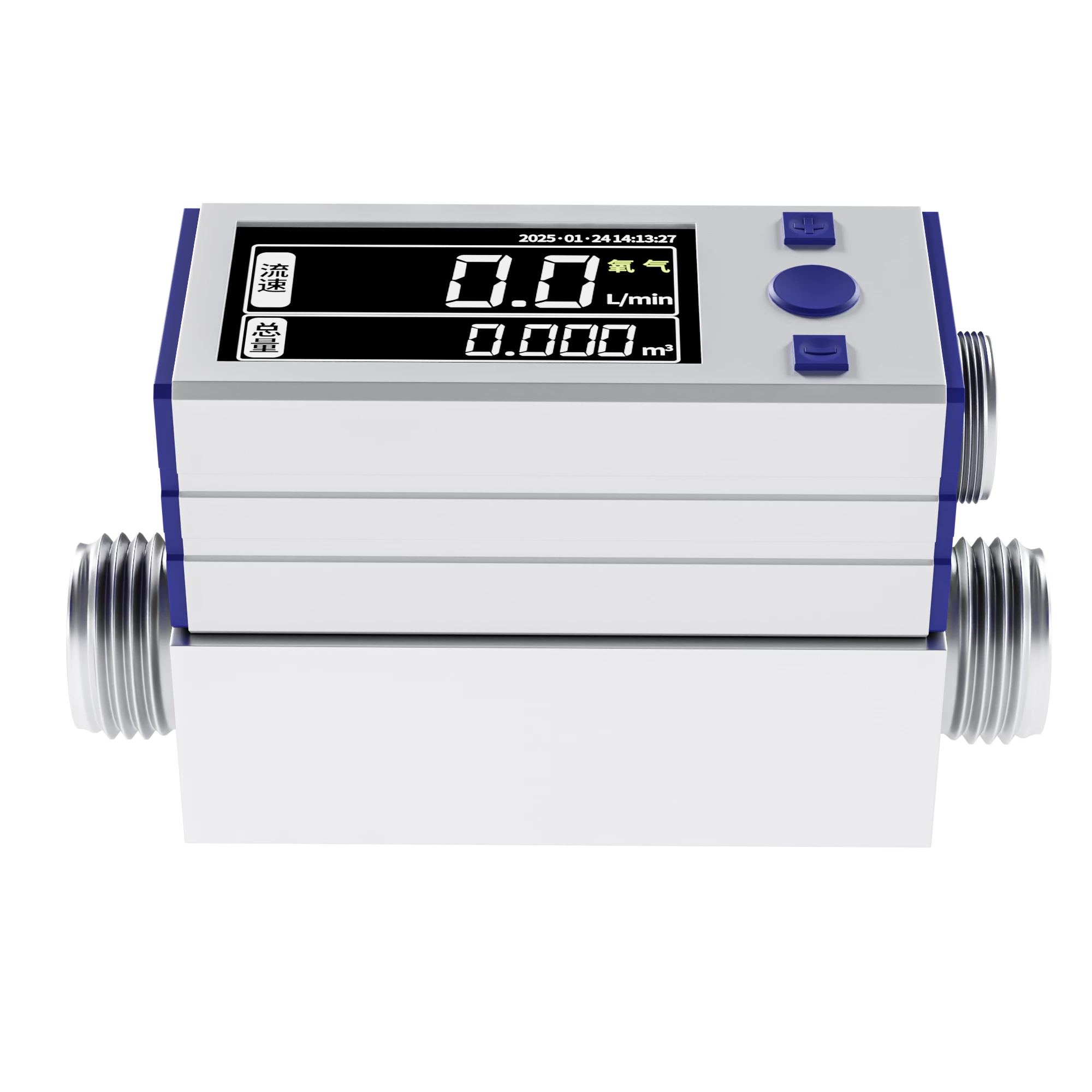

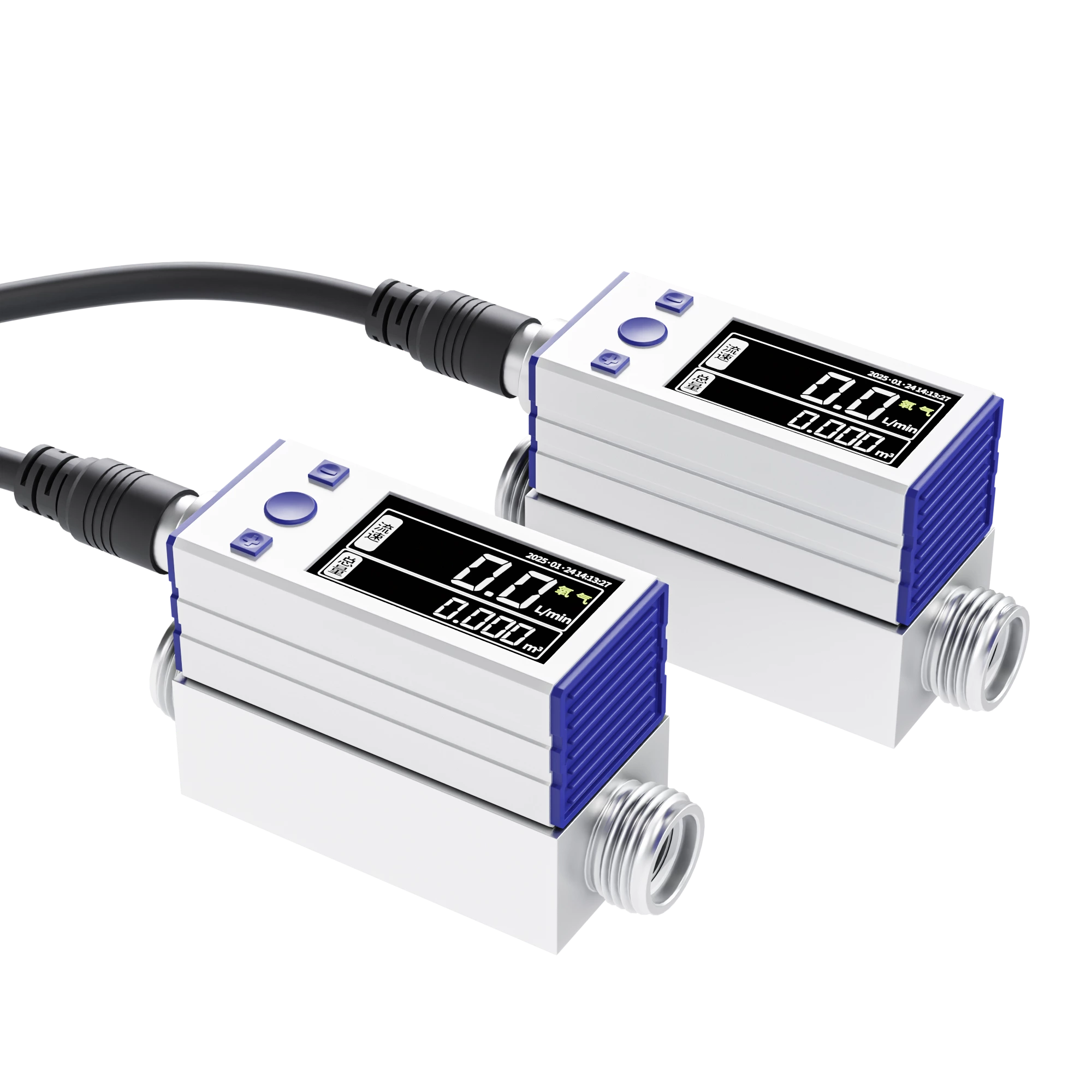

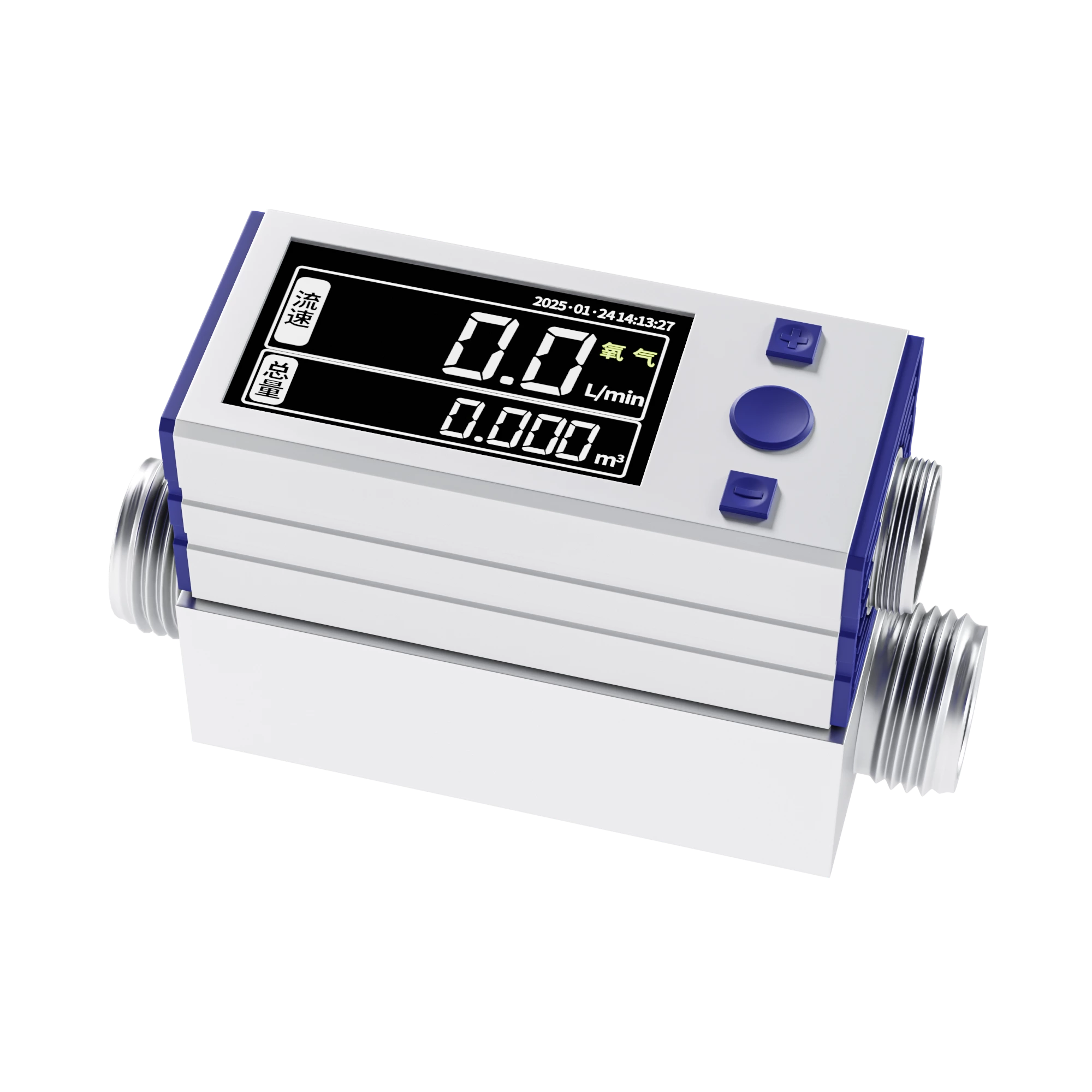

FTM200 Micro Gas Mass Flow Meter
The FTM200 Micro Gas Mass Flow Meter is a compact, lightweight, and highly precise instrument designed for measuring gas flow rates and cumulative flow in various industrial environments. It features advanced anti-interference technologies and supports multiple signal outputs, enabling networked management through communication interfaces. This makes it ideal for applications in medical devices, oil and gas, chemical processing, energy systems, laboratories, and research.
| Specification | Detail |
|---|---|
| Series Number | FTM200 (Micro gas mass flowmeter) |
| Measurement Range | 0.2~20L/min to 3~300L/min (Various process connections available based on flow range) |
| Accuracy | 1.5 grade |
| Display Type | LCD display with 180° rotatable screen |
| Output & Power Supply | 4~20mA + pulse + RS485 + flow limit alarm, 24VDC (9~24V; if using 4~20mA, must be powered by 24V) |
| Process Connection | Quick connect options from Φ6mm to Φ12mm and M22*1.5/G1/2, materials include copper-nickel and 304SS |
| Housing Material & Protection Class | Aluminum alloy housing, IP52 protection (Base 304SS) |
- Compact and Lightweight Design: Simplified structure with minimal size and weight.
- High Precision Measurement: Utilizes advanced microelectronic technology for enhanced accuracy and reduced sensor size.
- Broad Rangeability: Multi-sensor integration on a single chip improves measurement range.
- Real-time Zero Adjustment: Ensures stability and faster response through continuous zero-point monitoring.
- Clear LCD Display: Features a rotatable 180° screen for intuitive and flexible reading.
- Medical Equipment: Monitoring of gases in ventilators and anesthesia machines.
- Oil and Gas Industry: Accurate measurement of natural gas flows.
- Chemical Processing: Monitoring of process gases in chemical reactions.
- Energy Systems: Monitoring of biogas and other renewable energy sources.
- Laboratory and Research: Precise control of experimental conditions.
