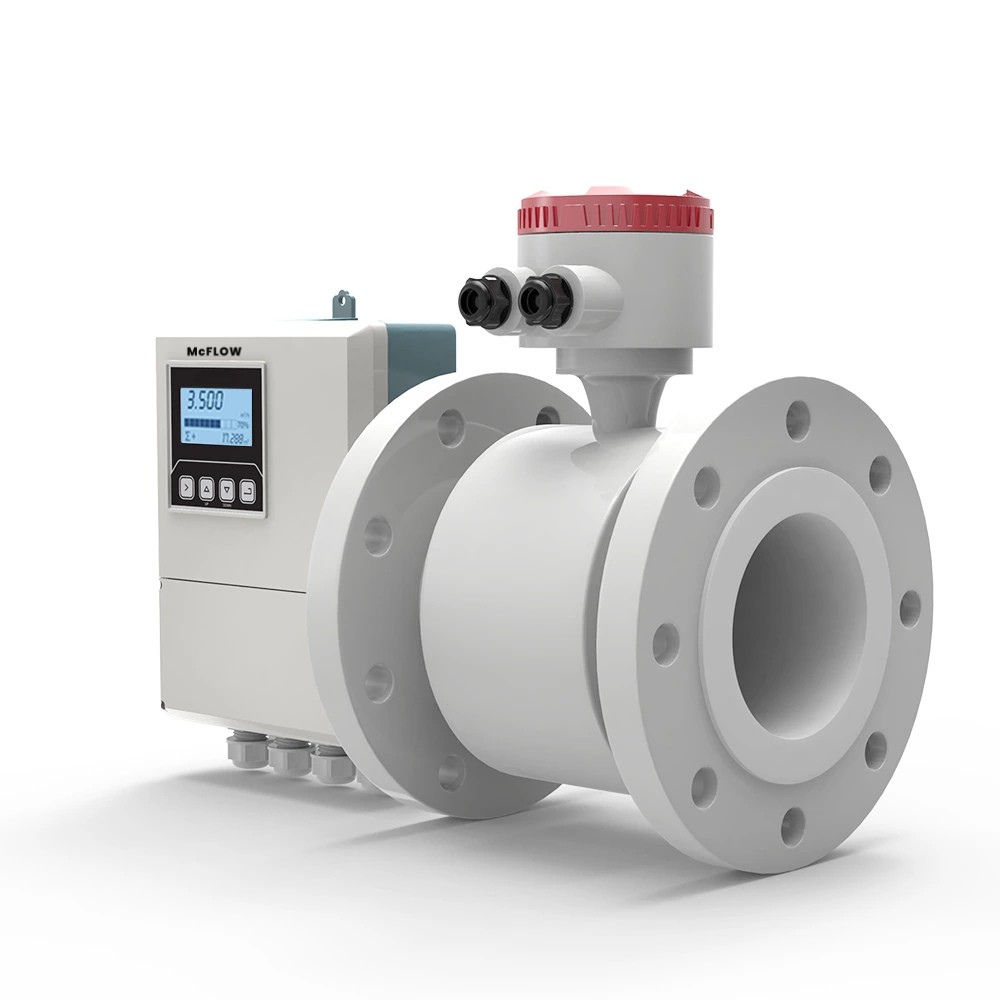

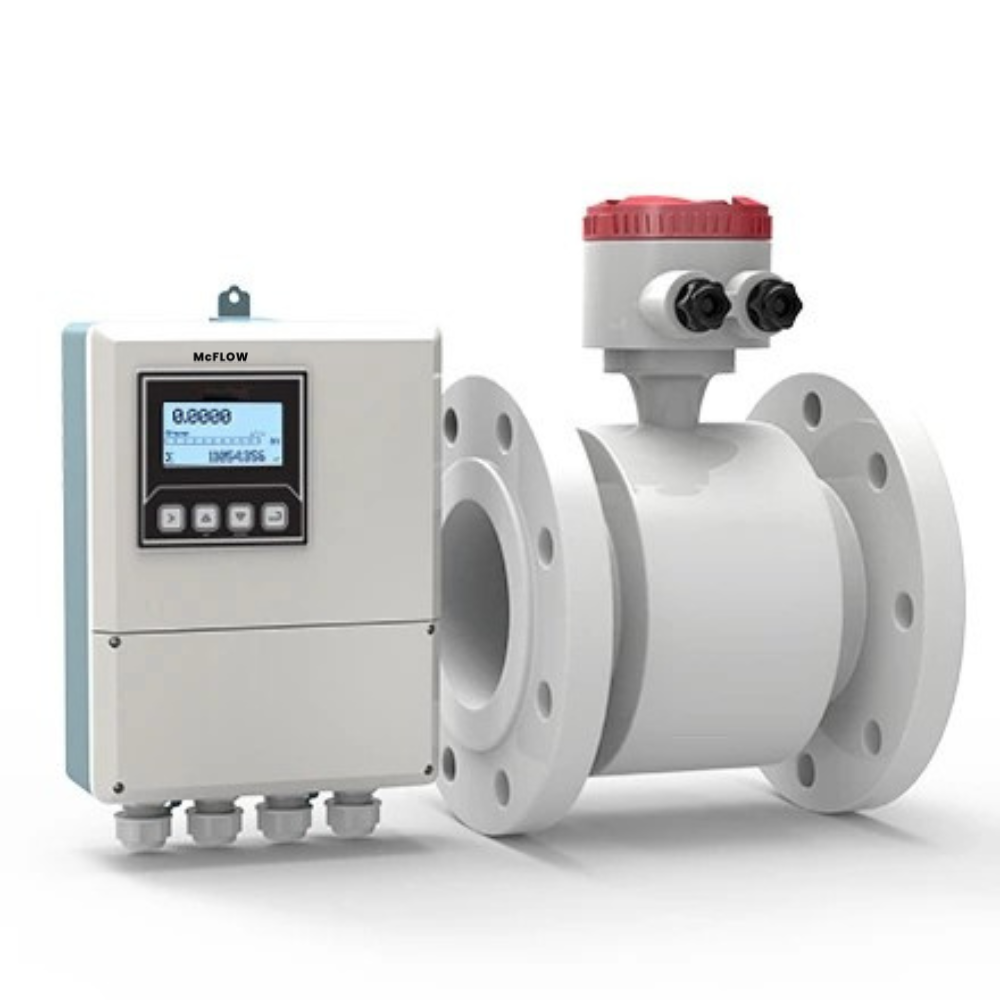

SUP-LDG Remote type electromagnetic flowmeter
Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.
Characteristics
Accuracy: ±0.5% (Flow speed > 1m/s)
Reliably: 0.15%
Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Recommended value: ＞30μS/cm
Flange: ANSI/JIS/DIN DN15… 1200
Ingress protection: IP68
| Product | Electromagnetic flow meter |
| Model | SUP-LDG |
| Diameter nominal | DN15~DN1200 |
| Nominal pressure |
DN15 - DN250, PN ≤1.6MPa DN300 - DN1000, PN ≤1.0MPa DN1200, PN ≤0.6 MPa Higher pressure can be customized |
| Accuracy | ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F.S.±2mm/s (Flow speed <1m/s) |
| Repetitiveness | 0.16% |
| Liner material | Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA |
| Electrode material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt |
| Medium temperature |
Neoprene: -10...+60°C Polyurethane: -10...+60°C PTFE/FEP: -10...+120°C PFA: -10...+120°C |
| Power supply | 85-245VAC, 50/60Hz, 22VDC-26VDC |
| Structure type | Compact type, Remote type |
| Ingress protection | IP65, IP68 (remote type only) |
| Product standard | JB/T 9248-2015 |
Mag meter works based on Faraday’s law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An Electromagnetic Flowmeter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.
The measurement principle of magnetic flow meters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:
E=K×B×V×D
Where:
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube
