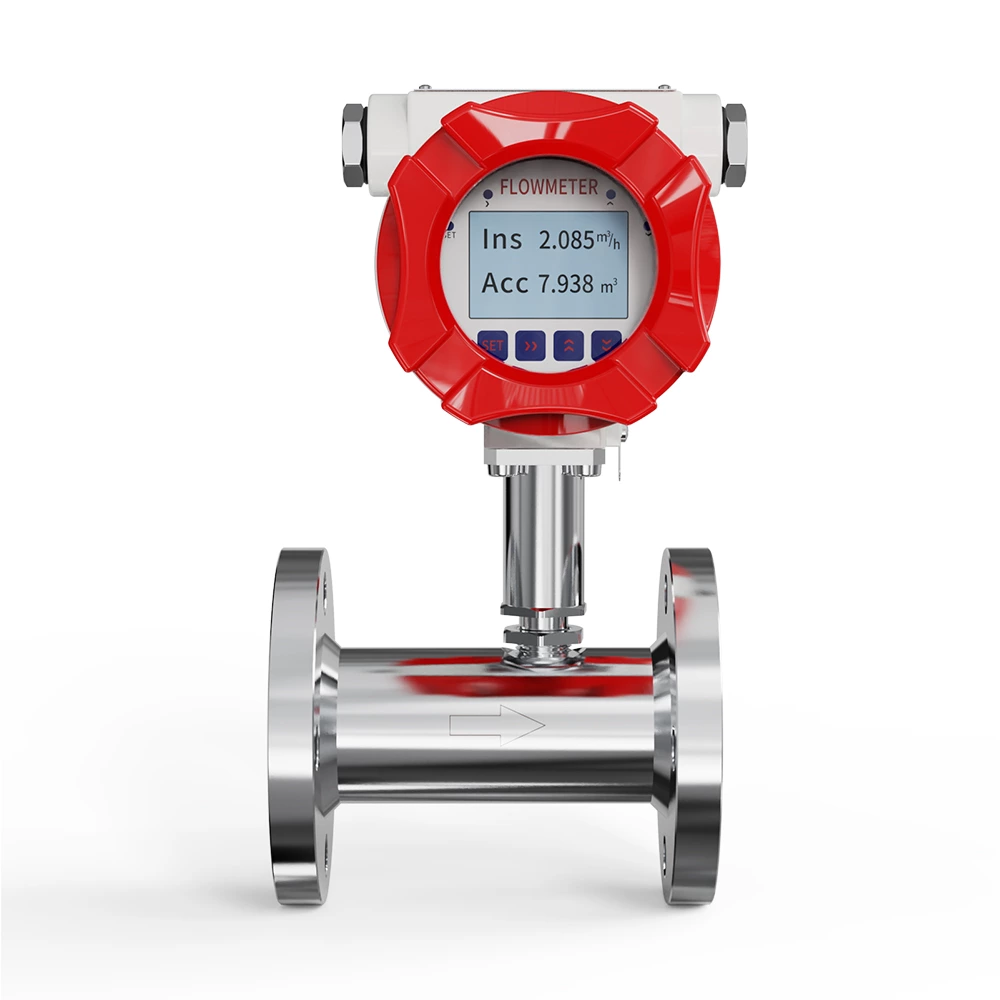

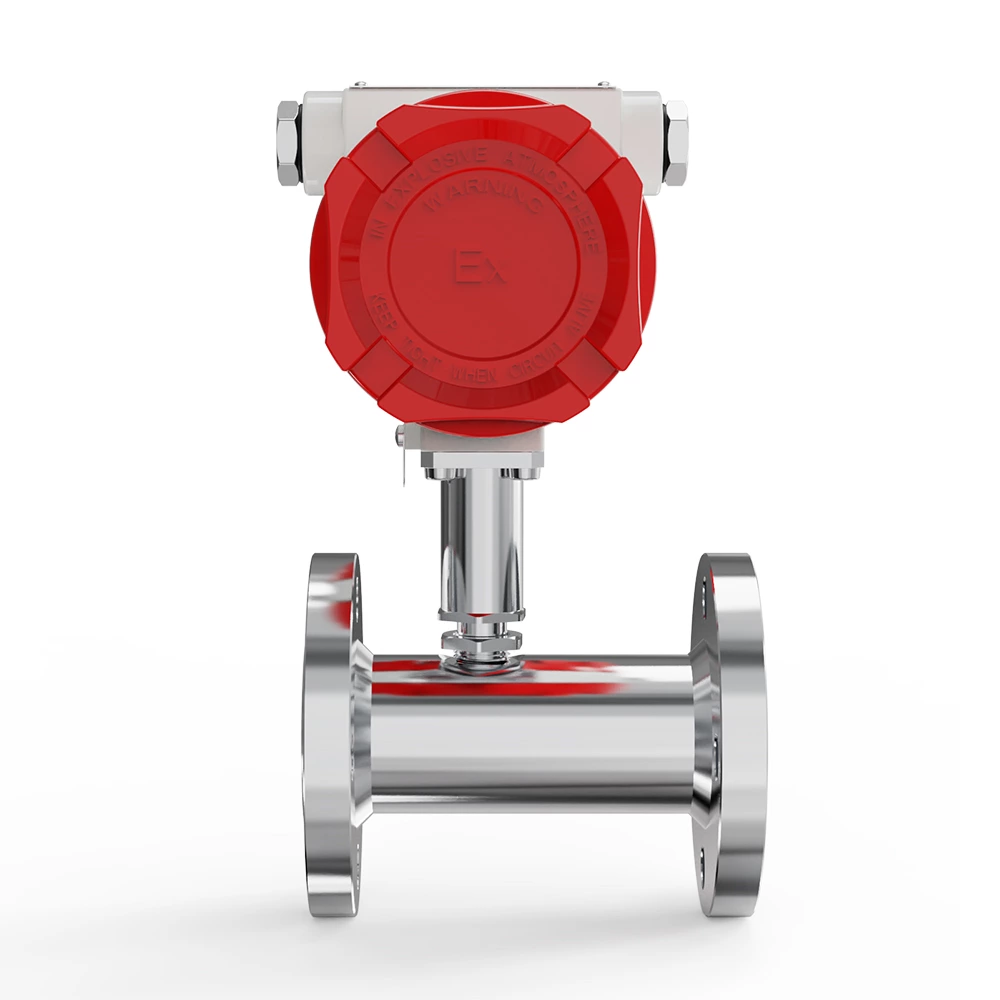

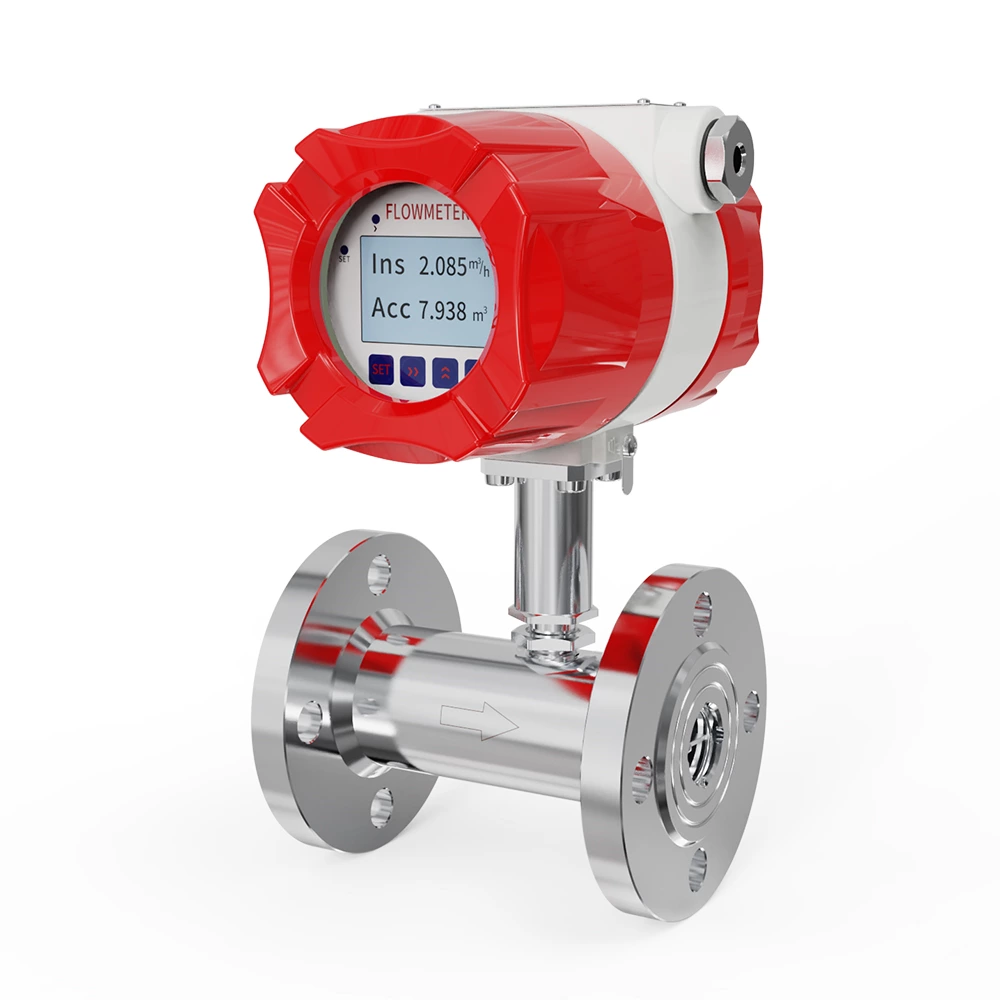

SUP-LWGY Turbine flowmeter flange connection
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.
Characteristics
Pipe diameter: DN4~DN200
Accuracy: 0.5%R, 1.0%R
Power supply: 3.6V lithium battery; 220VAC; 24VDC
Ingress protection: IP65 (IP67, IP68 protocol supply, pulse converter probe IP00)
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
| Product | Turbine flowmeter |
| Model | SUP-LWGY |
| Diameter Nominal | DN4~DN200 |
| Atmospheric Pressure | 88kPa ~ 106kPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium viscosity |
Less than 5×10-6m²/s (for the liquid with >5×10-6m²/s, the flowmeter needs to be calibrated before using) |
| Medium Temperature | -20℃ ~ +120℃ |
| Power Supply | 3.6V lithium battery; 220VAC; 24VDC |
| Output Signal | Pulse, 4-20mA, Modbus, Hart |
| Ingress protection | IP65 (IP67, IP68 protocol supply, pulse converter probe IP00) |
