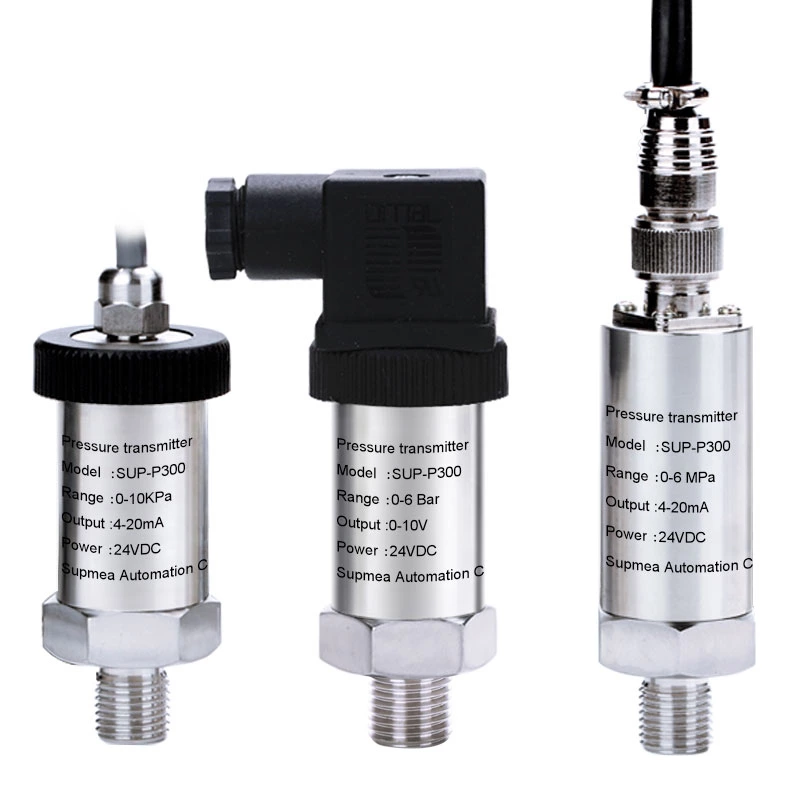

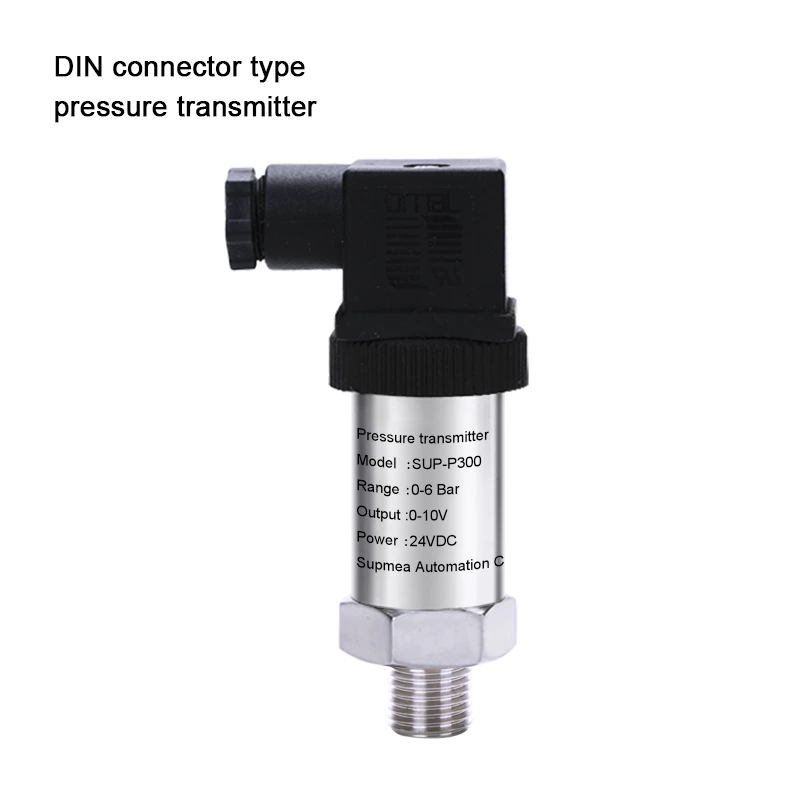

SUP-P300 Pressure transmitter with compact size for universal use
SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm, can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
Characteristics
Range: -0.1…0…60MPa
Resolution: 0.5% F.S; 0.3%F.S optional
Output signal: 4…20mA; 1…5V; 0…10V; 0…5V; RS485
Installation: Thread
Power supply: 24VDC (9 ~ 36V)
SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
| Product | Pressure transmitter |
|---|---|
| Model | SUP-P300 |
| Measure range | -0.1MPa…0~10kPa…60MPa |
| Pressure type | Gauge pressure, Adiabatic pressure, Sealing pressure |
| Accuracy | 0.5% FS; 0.2%FS; 0.25%FS optional |
| Output signal | 4-20mA; 1-5V; 0-10V; 0-5V; RS485 |
| Temperature compensation | -10~70 ℃ |
| Working temperature | -20~85 ℃ |
| Medium temperature | -30~105 ℃ |
| Storage temperature | -40~125 ℃ |
| Overload pressure | 0.035~10MPa (150%FS) , 10~60MPa (125%FS) |
| Long-term stability | ± 0.2%FS/year |
| Power supply | 10~32V (4–20mA); 12~32V (0–10V); 8~32V (RS485, 0–5V, 1–5V) |
| Ingress protection | IP65, IP68(optional) |
