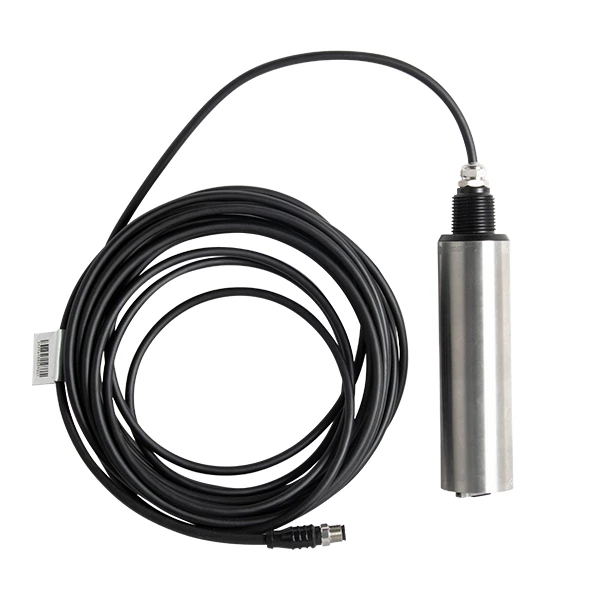

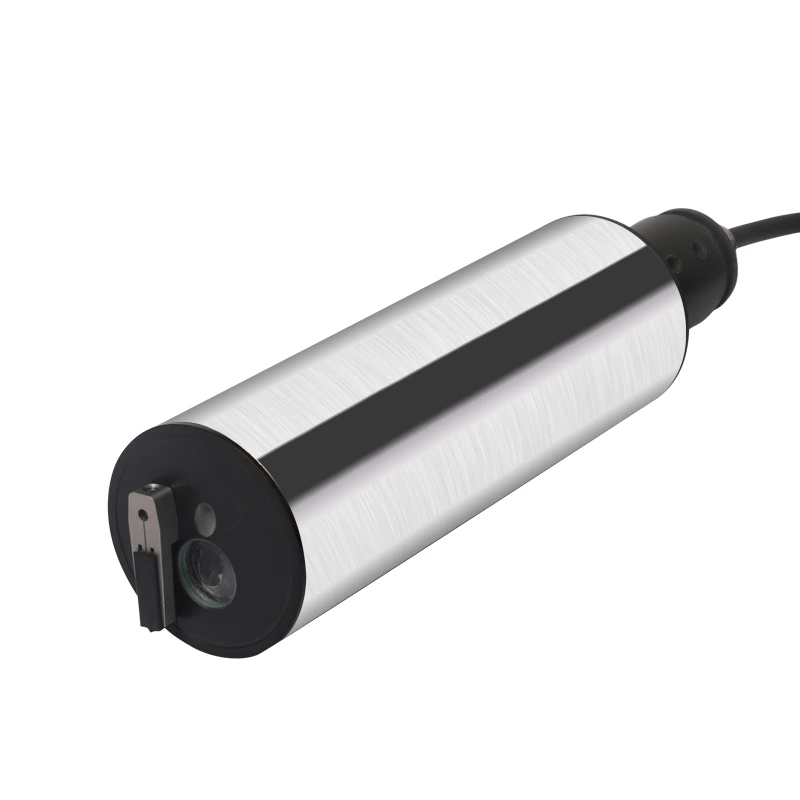

SUP-PTU-8010 Turbidity Sensor
The SUP-PTU-8010 turbidity sensor uses infrared scattered light technology for accurate, stable, and repeatable measurements. With self-cleaning, digital output, and plug-and-play installation, it suits water treatment, industrial, and aquaculture applications.
Characteristics
Dual-Beam Infrared Scattered Light Photometer Detection Technology
Excellent Repeatability and Stability for Accurate Measurements
Built-in Self-Diagnosis System Enhances Reliability
Wide Measuring Range from 0.01 to 3000 NTU Suitable for Various Applications
Standard Digital Signal Output Facilitates Easy Integration and Networking Without Needing a Controller
Optional Stainless Steel or Titanium Shell for Durability in Different Environments
| Specification | Detail |
|---|---|
| Measurement Range | 0.01–3000 NTU |
| Operating Temperature | 0–45°C |
| Pressure Rating | 0.4 MPa |
| Thread Type | R1 |
| Shell Material Options | Stainless Steel | Titanium |
| Electrode Scraper | Optional (Standard: Without | Available With) |
| Cable Length | Standard: 10m | Custom: Up to 100m |
SUP-PTU-8010 Turbidity Sensor
The SUP-PTU-8010 Turbidity Sensor employs infrared scattered light technology to measure suspended particles in water. By analyzing the intensity of light scattered at a 90° angle, it provides accurate turbidity readings from 0.01 NTU to 3000 NTU, making it ideal for real-time monitoring in water treatment, wastewater management, and industrial processes.
Key Features:
- Advanced dual-beam infrared detection for stable, repeatable results

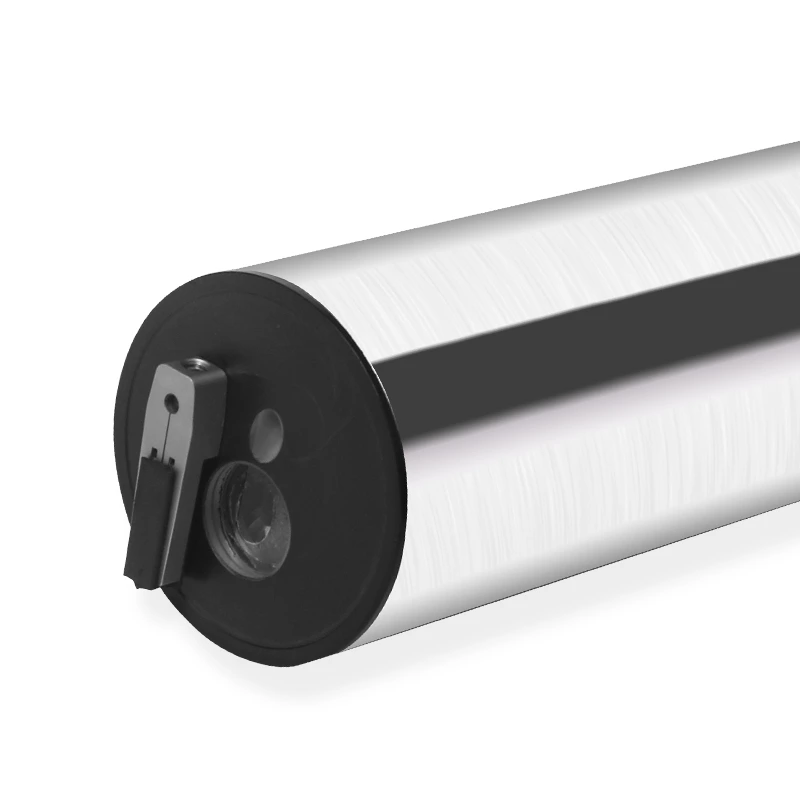

- Integrated self-cleaning function reduces maintenance needs
- Self-diagnosis capability for proactive system monitoring
- High anti-interference design with long-distance signal transmission
- Plug-and-play installation with standard digital output (RS485/Modbus)
Applications include:
- Water treatment plants (inlet, sedimentation tanks)
- Wastewater treatment facilities
- Industrial process water monitoring
- Aquaculture systems for water quality control
