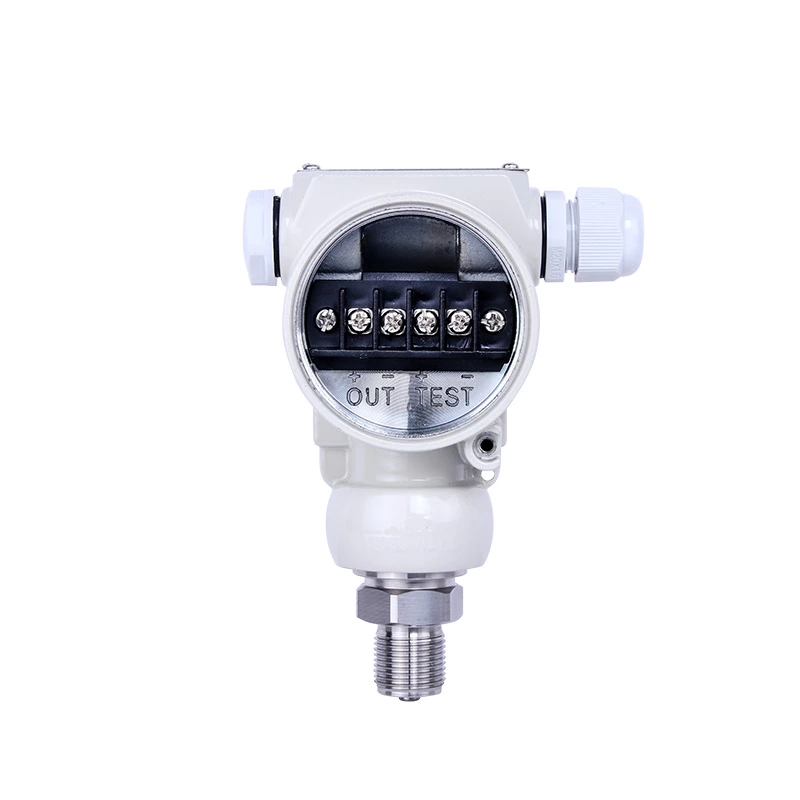

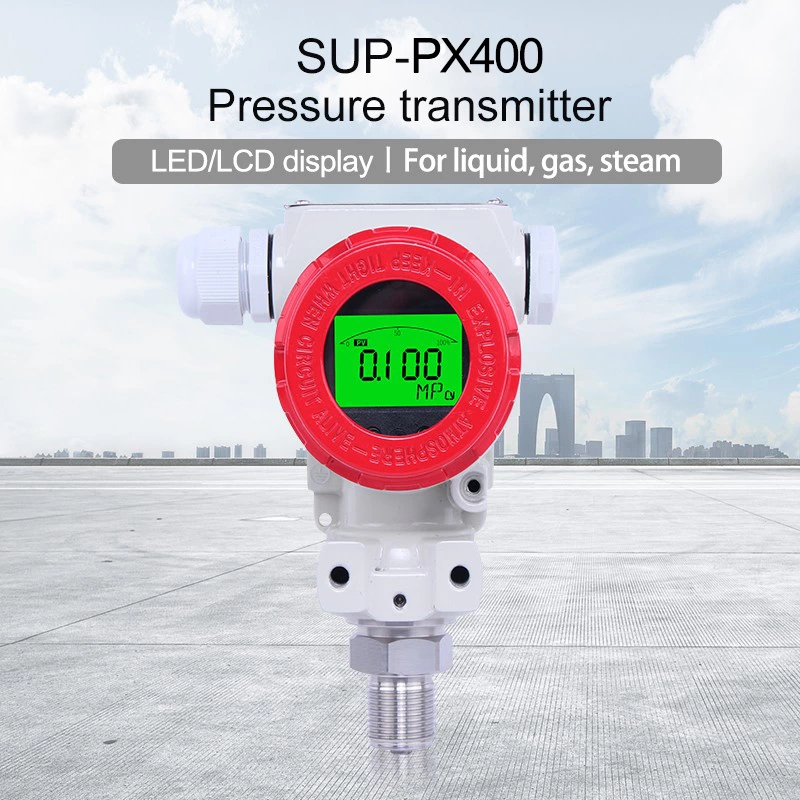

SUP-PX400 Pressure transmitter
SUP-PX400 pressure transmitter take use of OEM all-welded pressure core body, miniature amplifier processing circuit. The products are widely used in industrial process control, petroleum, chemical, metallurgy and other industries.
Characteristicsa
Range: -0.1~ 0 ~ 60MPa
Resolution: 0.5% F.S; 0.3%F.S optional
Output signal: 4~20mA
Installation: Thread
Power supply: 24VDC (9 ~ 36V)

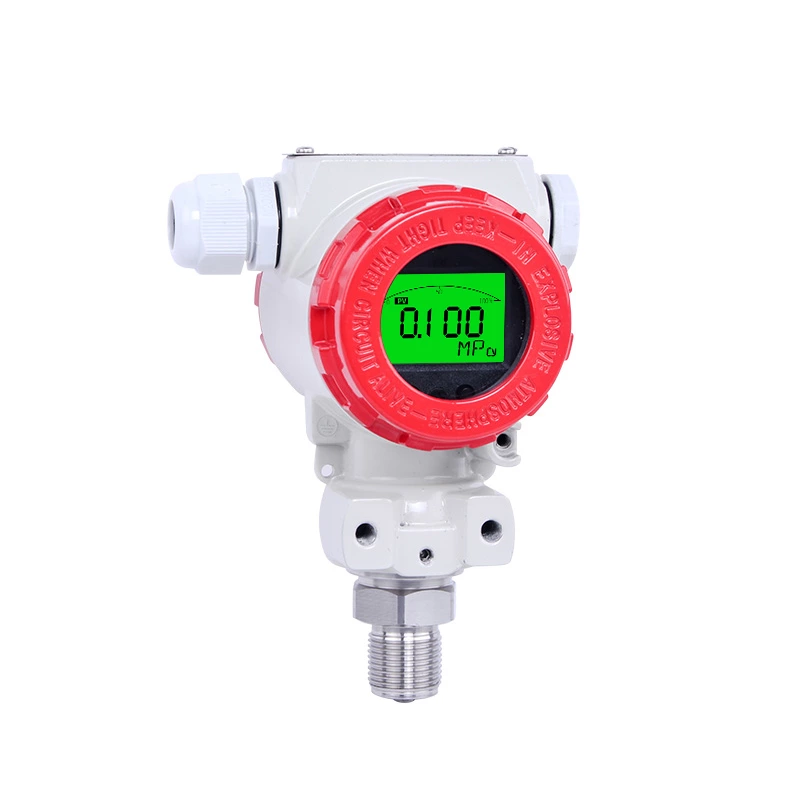

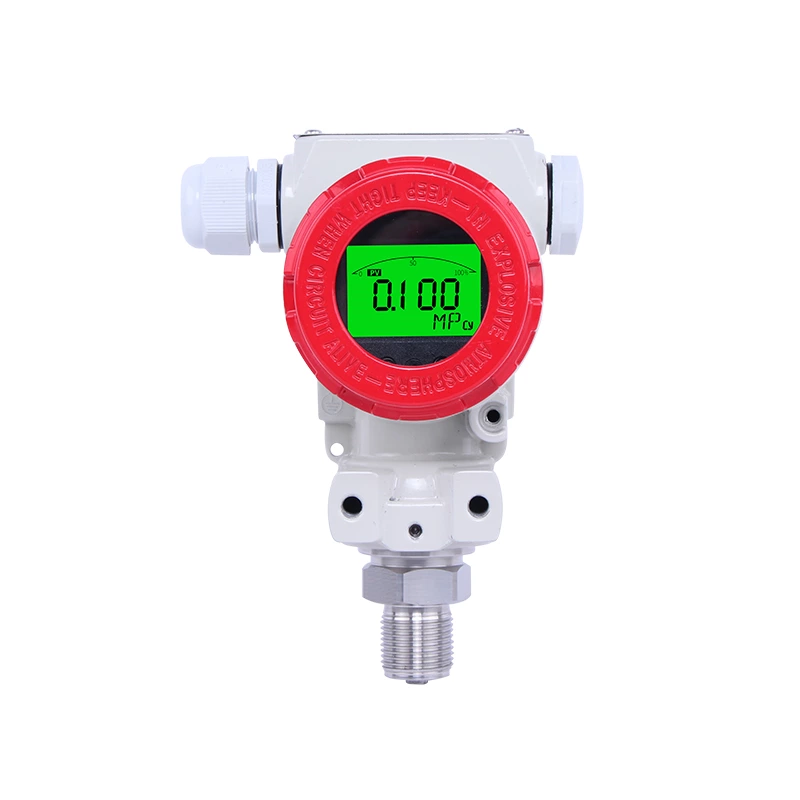

SUP-P400 Digital Smart LED/LCD display with shell industrial pressure transmitter
| Product | Pressure transmitter |
|---|---|
| Model | SUP-PX400 |
| Measure range | -0.1… 0/0.01…60Mpa |
| Pressure type | Gauge pressure, adiabatic pressure and sealed pressure |
| Accuracy | 0.5% F.S |
| Output signal | 4-20mA; 1-5V; 0-10V; 0-5V; RS485 |
| Temperature compensation | -10 ~ 70 ℃ |
| Working temperature | -20 ~ 85 ℃ |
| Medium temperature | -20 ~ 105 ℃ |
| Storage temperature | -40 ~ 125 ℃ |
| Overload pressure | (0.035~10Mpa (150%FS); (10~60Mpa (125%FS)) |
| Long-term stability | ± 0.2%FS/year |
| Ingress protection | IP65, IP68(optional) |
| Power supply | 24VDC |
