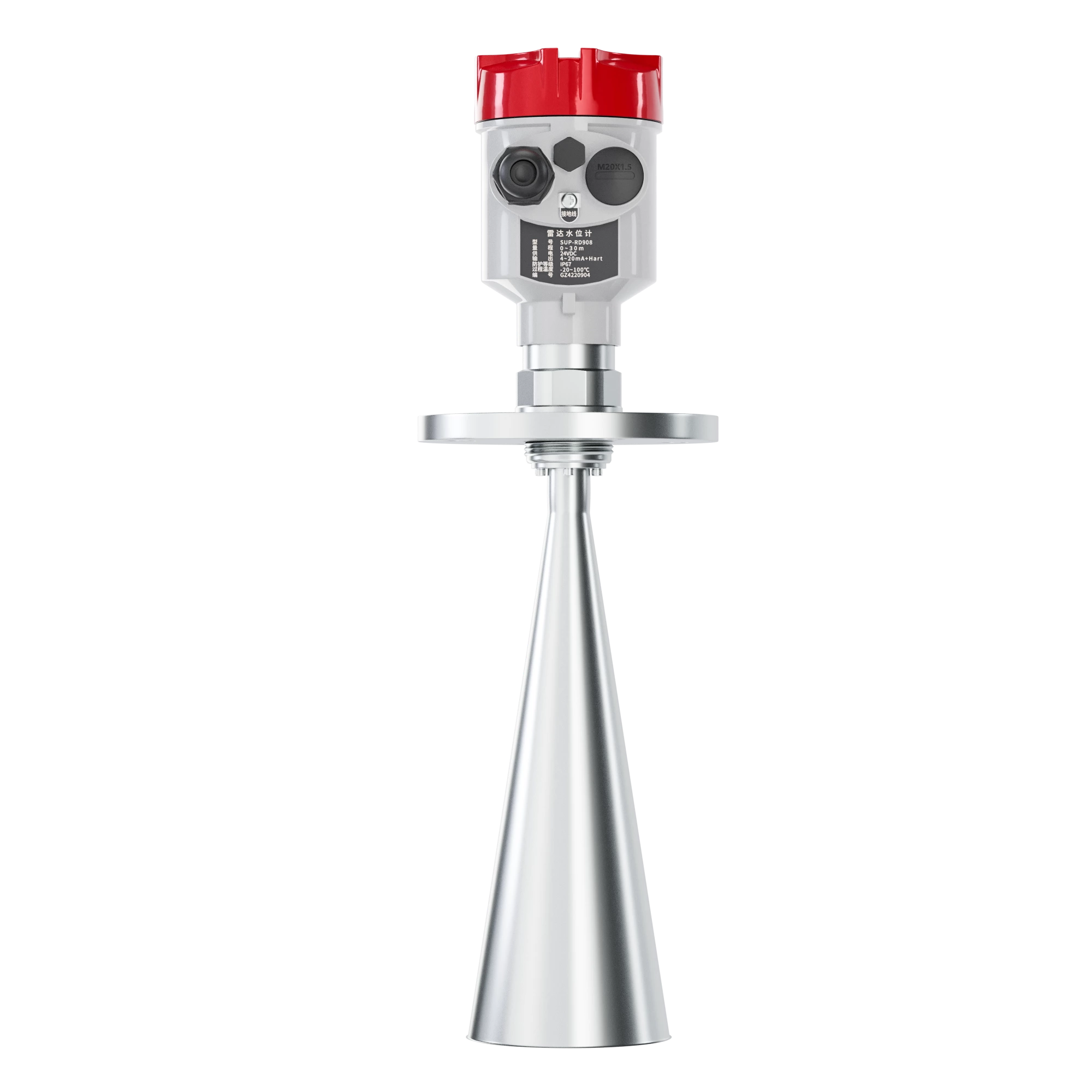

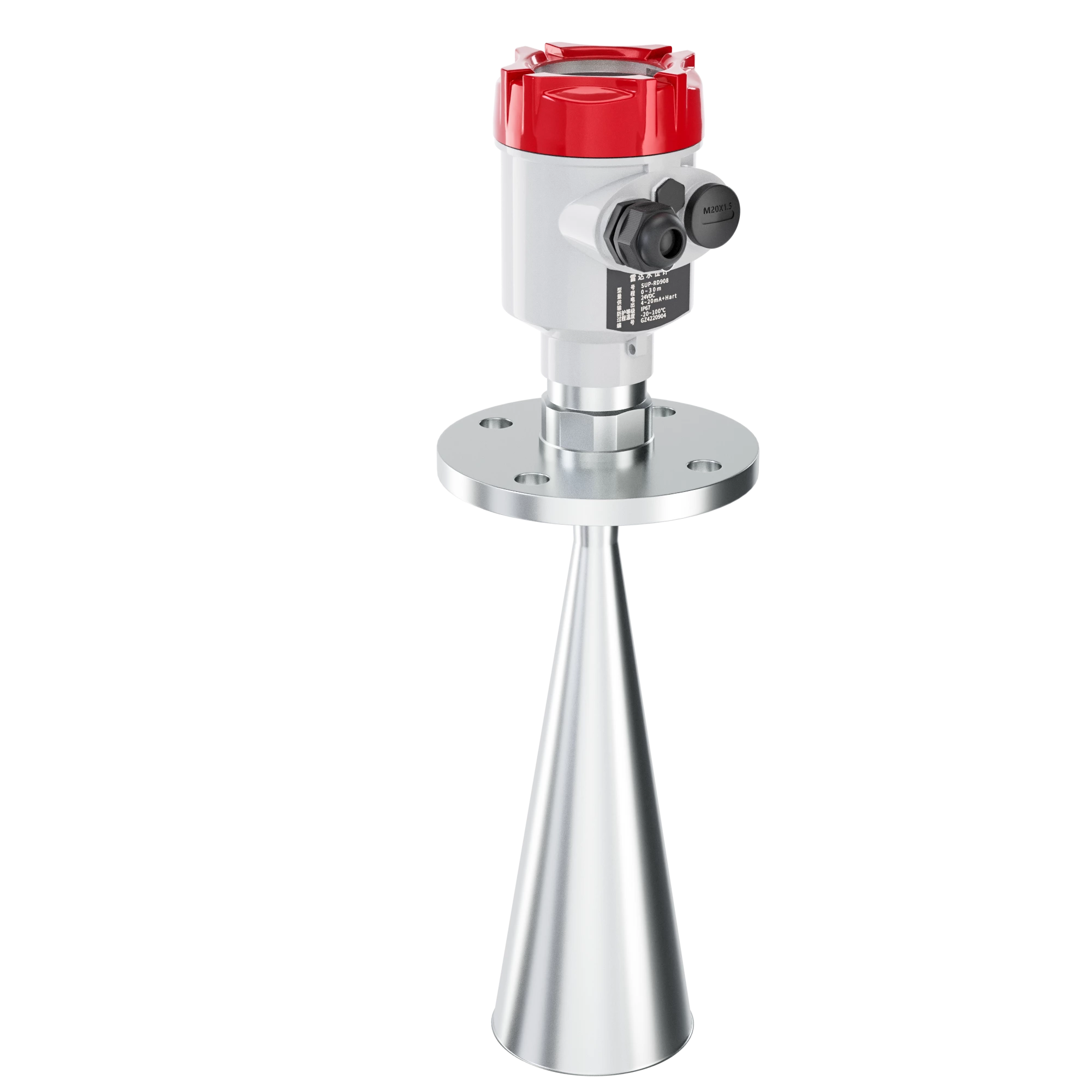

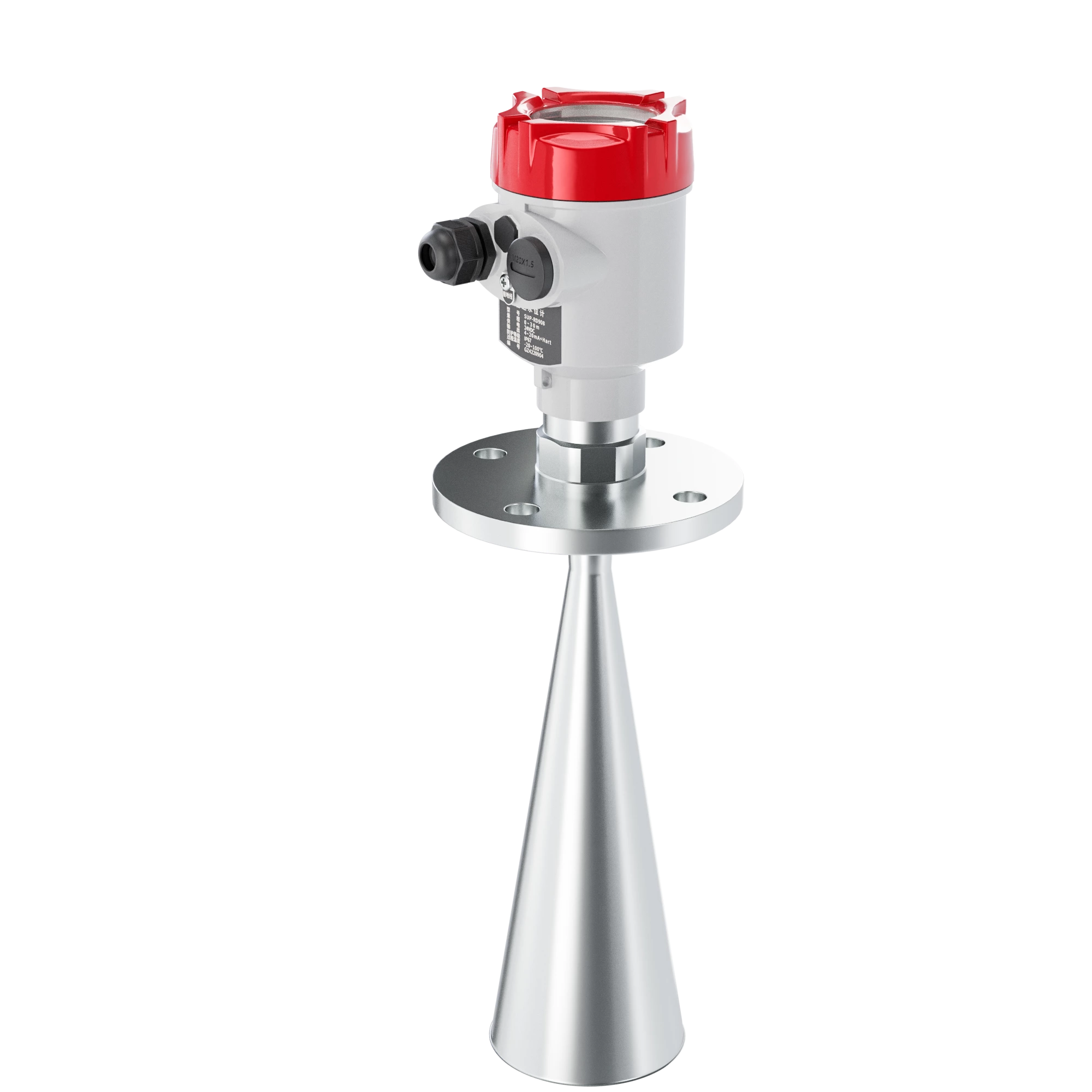

SUP-RD903 Solid material radar level meter
SUP-RD903 Solid material radar level meter with high frequency, measurement of solid material, strong dust, easy to crystallize, condensation occasion
Characteristics
- Range: 0~70 m
- Application: Solid material, strong dust, easy to crystallize, condensation occasion
- Frequency Range: 26GHz
| Product | Radar level meter |
| Model | SUP-RD903 |
| Accuracy | ± 15mm |
| Application | Solid material, strong dust, easy to crystallize, condensation occasion |
| Process Connection | Universal flange |
| Medium Temperature | -40°C~250°C |
| Process Pressure |
-0.1 ~ 0.3 MPa (universal flange); -0.1 ~ 4.0 MPa (flat flange) |
| Ingress protection | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | 2-wire (DC24V) / 4-wire (DC24V / AC220V) |
