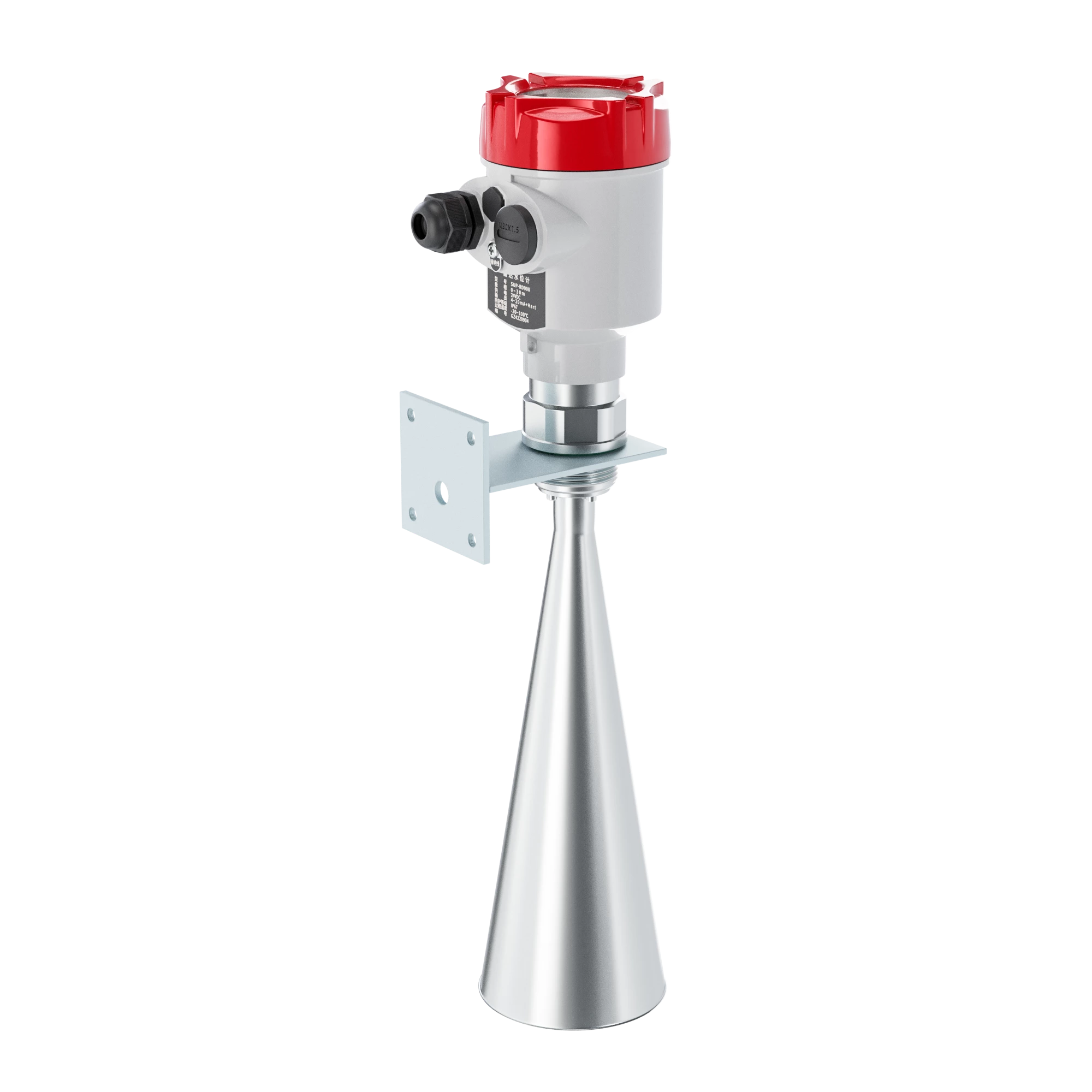

SUP-RD909 70 meters Radar level meter
SUP-RD909 Radar level meter adopts a recommended industry emission frequency of 26GHz, so it has beam angle is small, concentrated energy, has stronger anti-interference ability and greatly improves the precision and reliability of measurement. The measurement range of up to 70 meters, covering a large reservoir water level measurement.
Characteristics
- Range: 0~70 m
- Accuracy: ±10mm
- Application: Rivers, Lakes, Shoal
- Frequency Range: 26GHz
SUP-RD909 Radar level meter adopts a recommended industry emission frequency of 26GHz. The measurement range of up to 70 meters, covering a large reservoir water level measurement.
| Product | Radar level meter |
| Model | SUP-RD909 |
| Measure range | 0~70 meters |
| Application | Rivers, Lakes, Shoal |

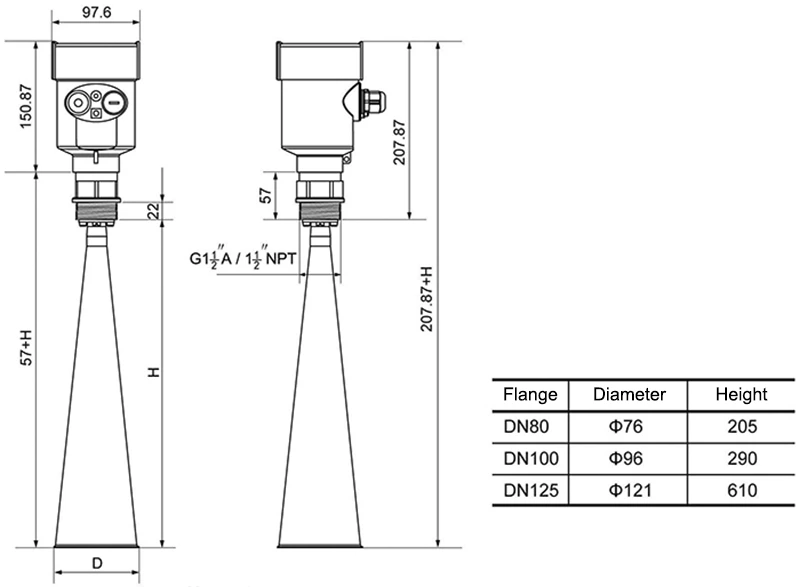

| Process Connection | Thread G1½ A / Flange / Flange |
| Medium Temperature | -40°C~100°C |
| Process Pressure | Normal pressure |
| Accuracy | ±10mm |
| Protection Grade | IP67 / IP65 |
| Frequency Range | 26GHz+ |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC(6~24)V / Four-wire |
| DC 24V / Two-wire |
