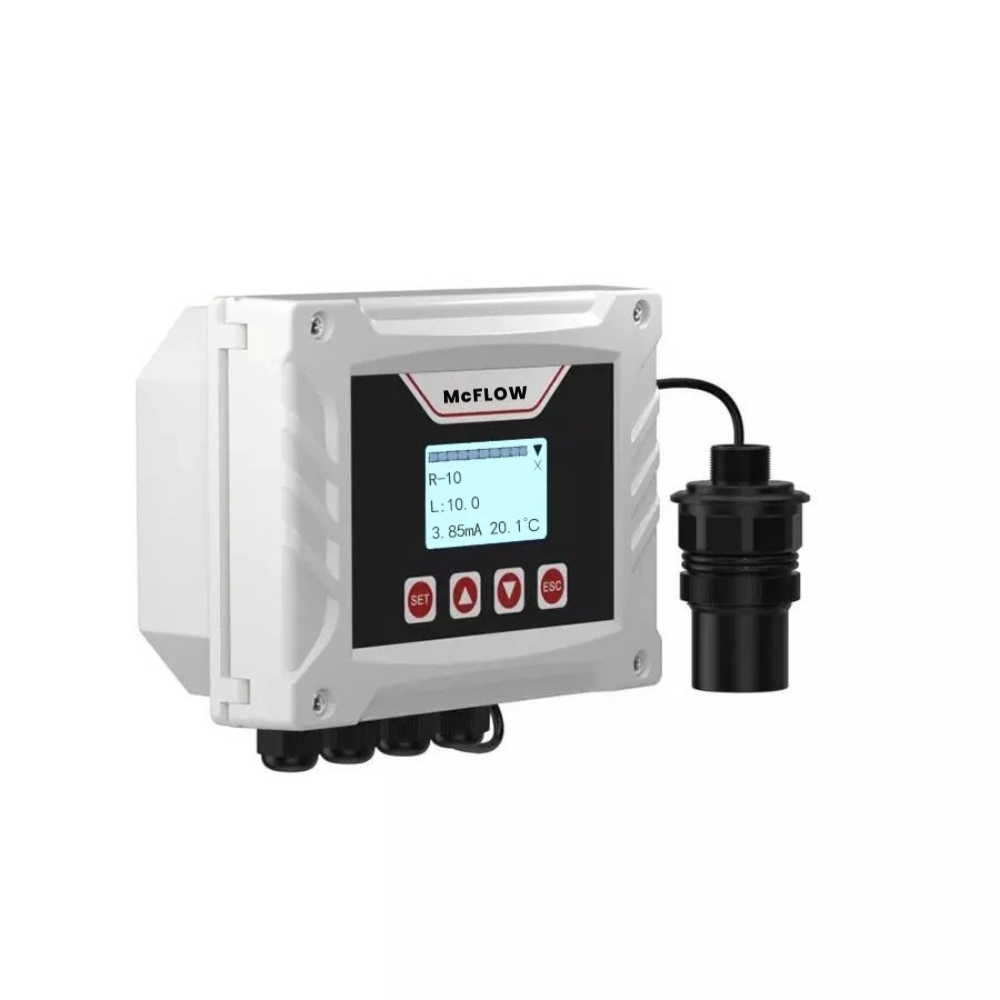

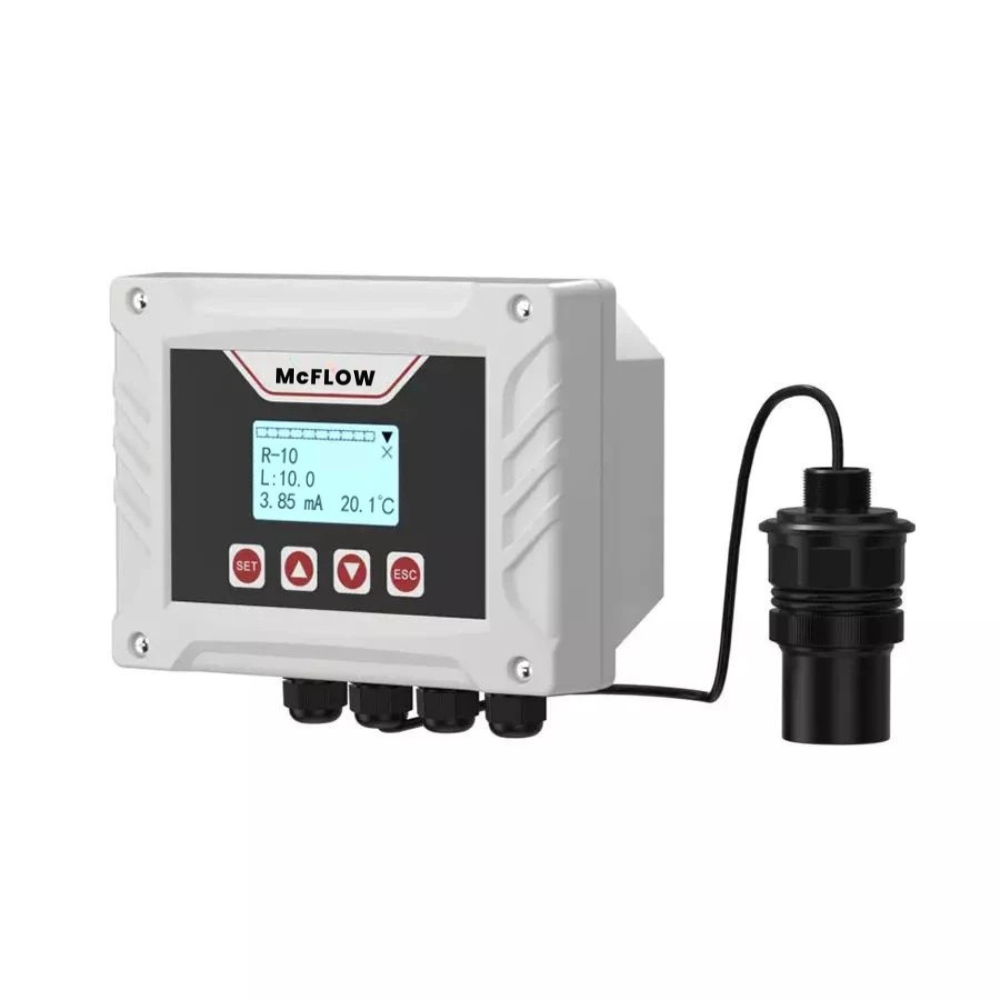

SUP-ULS-B Ultrasonic level transmitter

SUP-ULS-B Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.

Characteristics

Measure range: 0-15m(optional)，Non-explosive fluids

Blind zone: 0.3m

Accuracy: ±0.3%FS,±0.5%FS

Power supply: 100-240 VAC,18-28 VDC

SUP-ULS-B ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.

Product	Ultrasonic level transmitter
Model	SUP-ULS-B
Measure range	0-5m, 0-10m, 0-15m (optional)
Blind zone	≤0.3m (range 5m) ≤0.35m (range 10m) ≤0.5m (range 15m)
Accuracy	±0.3%FS, ±0.5%FS
Display	Monochrome LCD screen
Output (optional)	Isolated, 4-20mA
	Output precision: ±0.2%FS
	RL≤500Ω
Measuring variable	Level/Distance
Power supply	100-240 VAC, 5W MAX, 50/60Hz 18-28 VDC
Temperature range	Converter: -20~60 ℃ Sensor: -20~80 ℃
Humidity range	10%~85% RH (no condensation)
Ingress protection	Converter: IP65 Sensor: IP68
Cable	10m (Standard) 30m MAX (optional)
Alarm	2 relays Capacitance AC250V/3A (Standard), 4 relays (optional)
Installation	Wall-mounted
Communication	Isolated RS485, Modbus-RTU

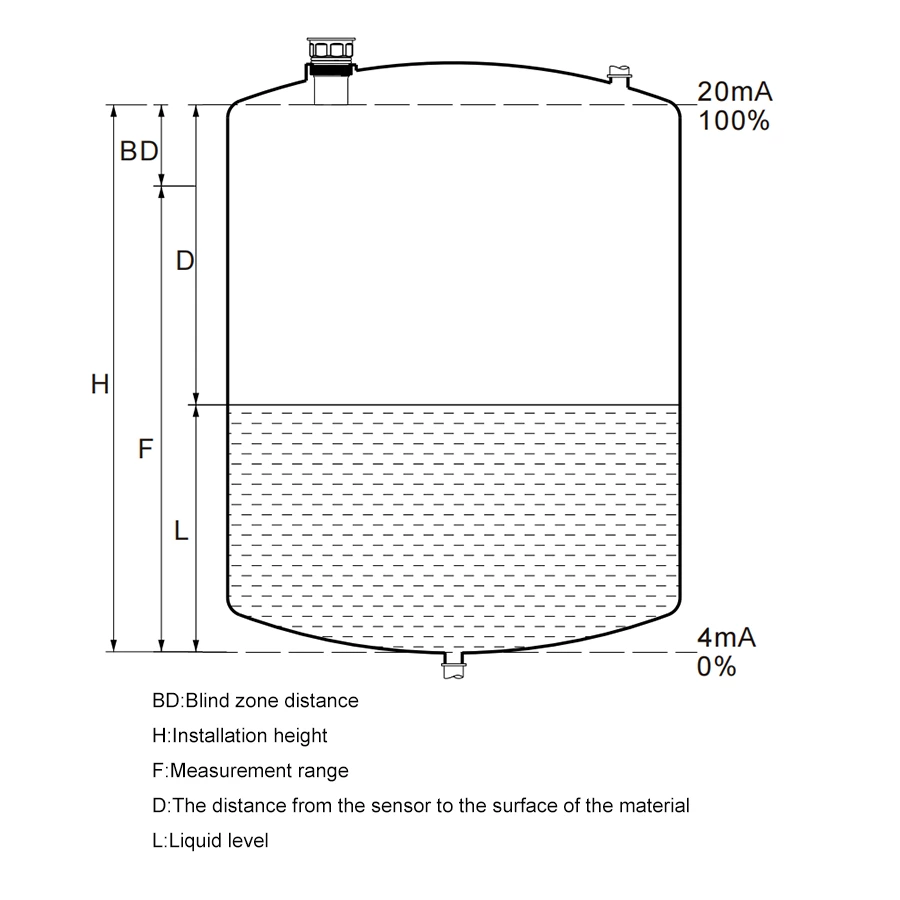

Ultrasonic level transmitters use ultrasonic waves to reflect when encountering the interface of liquid media (solid media) of different densities, and measure the liquid level/distance by measuring the transit time.
